Feature

Objective:4x,10x,40x(s) ,100x(s,oil)
Wide field plane-scope

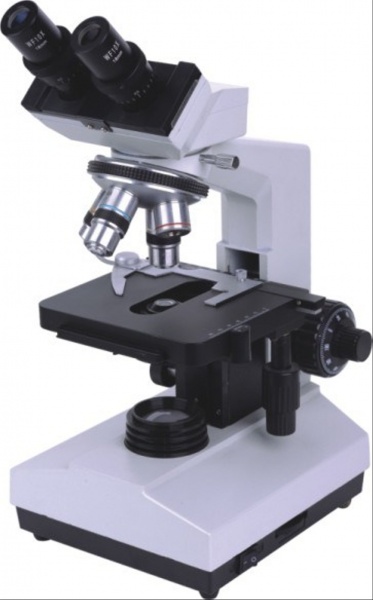

XSZ-107BN 1600X advanced bilogical Microscope:

45mm DIN achromatic objective:4x,10x,40x(s) ,100x(s,oil)
wide field plane-scope eyepiece:WF10X,WF16X;
Total magnification:40x-1600x;
interpupillary distance:55-75mm;45inclined,360rotatable;
double layer mechanical stage:142mmx132mm,muving range X-Y:75x50mm;
dia2-30mm iris diaphragm and dia32 filter; ABBE condensor:N.A. 1.25;
Coaxial coarse and fine focusing adjustable mechanism:25mm,precision:0.002mm;
built-in adjustable brightness halogen lamp 6V/20W

Spesifikasi Mikroskop Biological Binokuler XSZ-107 BN :
Sudut Pandang eyepiece 45, radius putar 360
Lensa Objective: Achromatic DIN 4X, 10X, 40X, 100X
Lensa Eyepiece: Wide Field WF10X, P16X (WF16X)
Stage: Single Layer Mechanical Stage 140X140mm, jarak main naik-turun 75X75mm
Sistem Penerangan: Lampu 6V/20W dengan pengaturan brightness
Condenser: Abne NA 1.25 condenser with Iris Diaphragm & filter, Rack & rmin concave yang dilengkapi sistem optik.
Pengaturan fokus objective 45mm, Fine Focus 30mm, ultra fine Focus 0.0002 mm
Focusing Stopper untuk mencegah objective dan slide bertubrukan
Sudah termasuk Kotak Kayu sebagai tempat penyimpanan permanen.
Include minyak emersi (immersion Oil)
Include Bulb halogen Cadangan.
Include sekring cadangan.
Include kaca filter biru.

Specification:

• Viewing Head Sliding Binocular Head, at 45 360 Rotatable
• Eyepiece Wide Field Eyepiece WF10X P16X
• Objective Achromatic DIN 4X 10X 40X(S) 100X(S, Oil)
• Stage Single Layer Mechanical Stage 140X140mm/75X50mm
• Condenser Abbe NA1.25 with Iris Diaphram & Filter
• Illumination Built-in Illumination, Halogen Lamp 110V or 220V/6V20W
• Plan-concave Mirror
